EGF PUSH 600x500 ral 9016 perforated panel return grille
EGF PUSH 600x500 ral 9016 perforated panel return grille
Regular price
€134,90 EUR
Regular price
€177,50 EUR
Sale price
€134,90 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

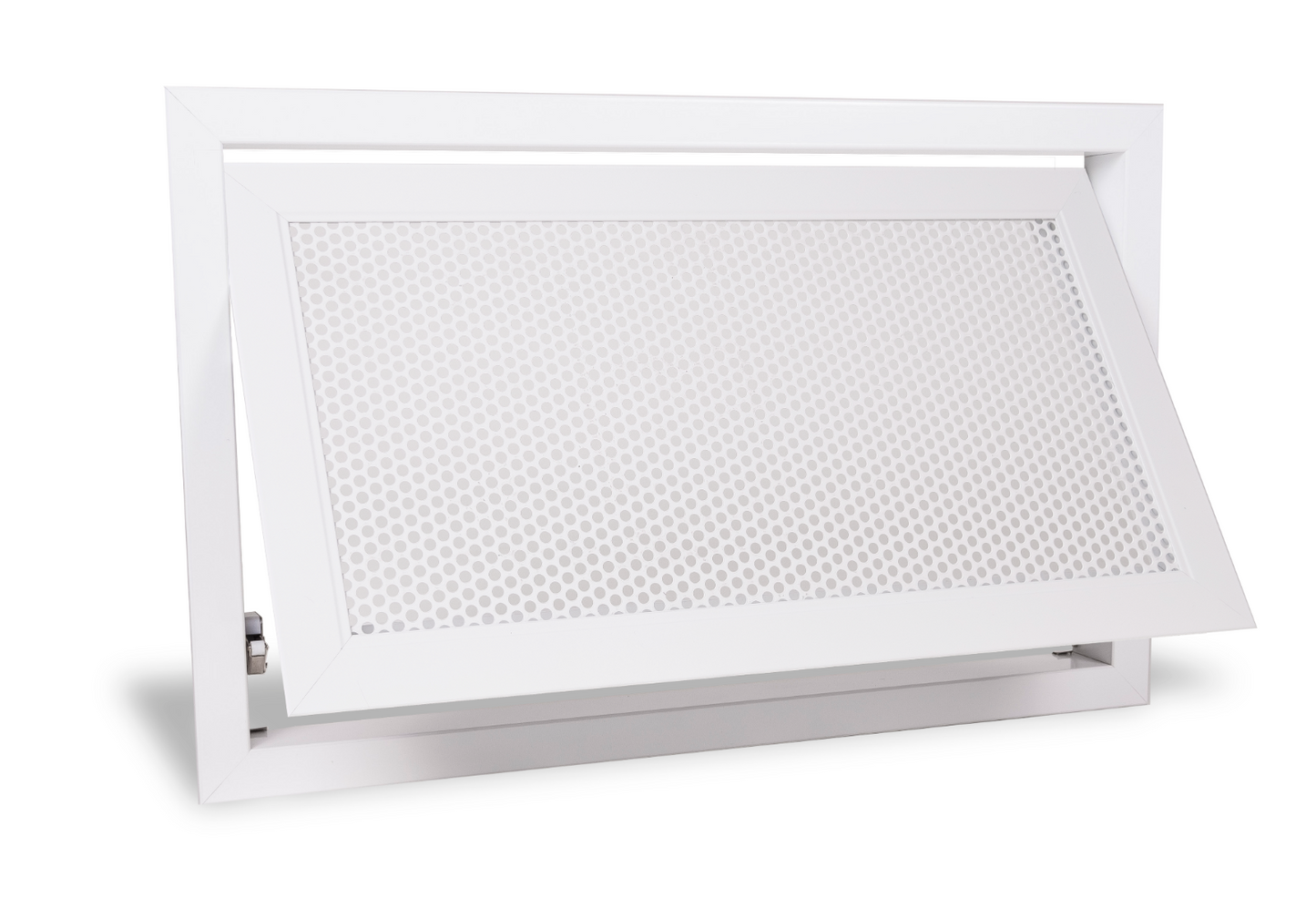

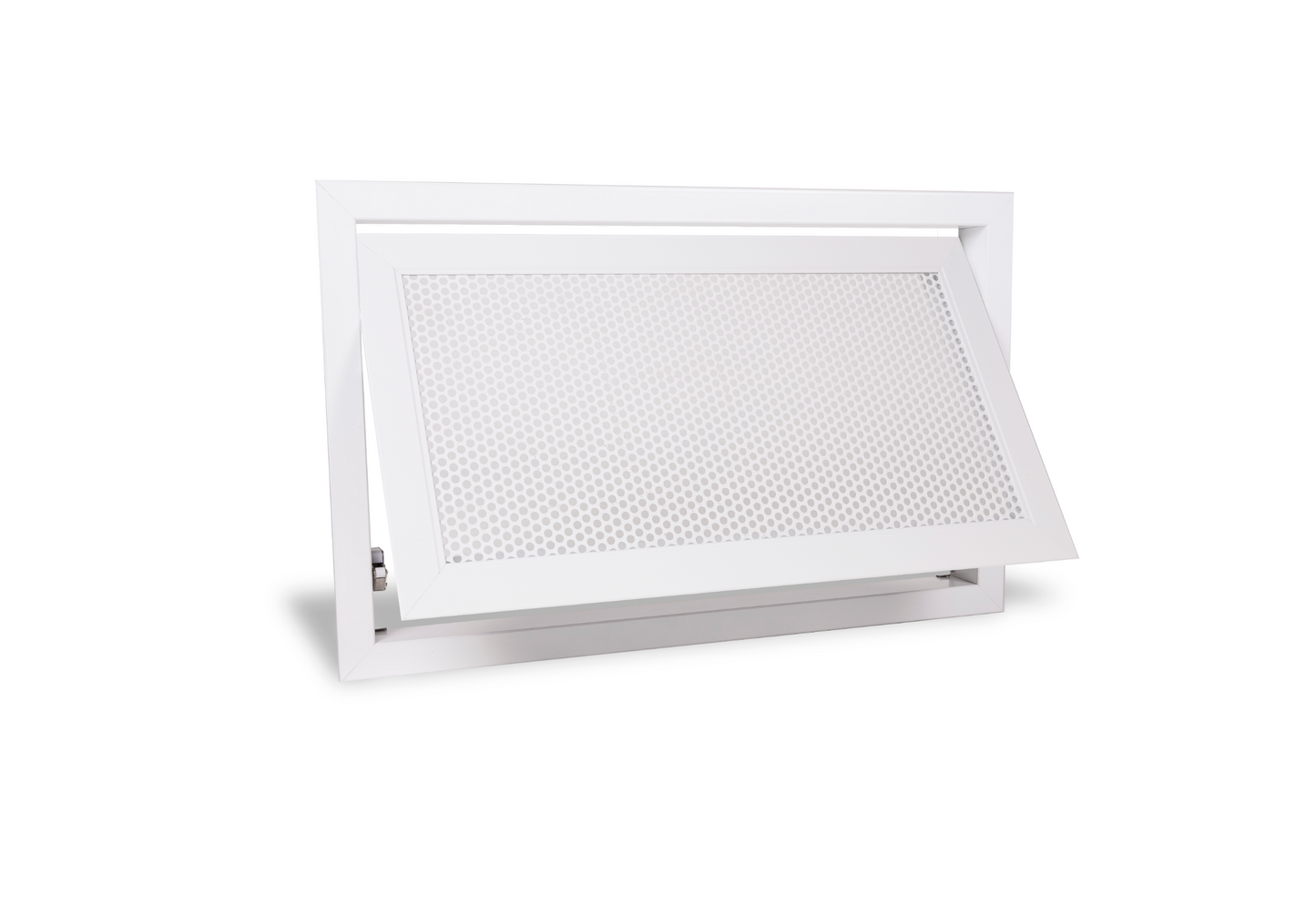

Perforated panel air intake grille, with double opening frame
with hinges and push-pull system for easy housing and replacement of the filter.
Aluminum perimeter frame.
Galvanized steel panel.
Finish: RAL9016 white paint.
Filter: COARSE class (G2) thickness 12 mm.
Opening/closing: with push-pull system.
The perforated mesh is made according to the following specifications:
-round holes alternating at 60°;
-empty/full ratio 46%;
-hole diameter 5mm;
-distance between centers 7mm.

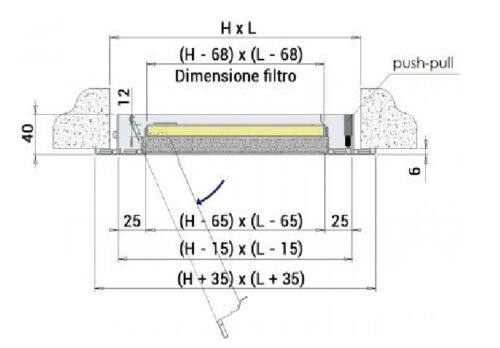

Installation
Installation is done by fixing the outer frame of the grill to the wall using screws.
Use
Grille for air intake in environments where pre-filtration is recommended.
Initial pressure drop less than 40 Pa with a velocity of 1.5 m/s on the filter.
